Hochleistungs Wasserpumpen für die Bewässerung in der Landwirtschaft

Wasserpumpen für die Bewässerung in der Landwirtschaft. Die Pumpen können elektrisch oder mit Dieselmotor angetrieben werden

Custom-made water pumps, open mounted on solid steel base frame, for agricultural irrigation. The pump units are specially designed for continuous operation in the extreme hot conditions in Africa.

The complete project consists of 8 pump units with a totally pump capacity of approx. 33.000 m³ of water per hour. That quantity of water is enough to irrigate permanently approx. 5.000 ha. of sugar cane fields. Delivery including valves on the discharge site of the pumps.

Quantity of pumps Type of engine Power of engine Speed of engine Type of pump Speed of pump Capacity of pump Total Head Total capacity / hour
3 CAT C18 Acert 428 kW 1800 rpm Van Heck HK700 540 rpm 5750 m³/h 18 mwc 17.250 m³/h
2 Cummins QSL 9-C 224 kW 1800 rpm Van Heck HK500 640 rpm 3550 m³/h 12 mwc 7.100 m³/h
3 Cummins QSC 8.3-C 183 kW 1800 rpm Van Heck HK400 800 rpm 2800 m³/h 12,2 mwc 8.400 m³/h
                32.750 m³/h
Video of planning, production and loading of the water pumps. 4.39 Min.
8 Water Pump Units with Diesel Engine for Agricultural Irrigation: 4.32 Min
The irrigation pump assemblies are made for export to huge agricultural plantations in East Africa.
View of the production hall for high capacity water pumps for agricultural irrigation. The red "Van Heck" water pumps are driven with CAT and Cummins diesel engines. The pump assemblies are made for export to huge agricultural plantations in East Africa.
View of a complete water pump assy for agricultural irrigation. Diesel engine driven.
View of one complete water pump assembly for agricultural irrigation. The (yellow) CATERPILLAR diesel engine Typ C18 Acert (428 kW at 1800 rpm) and the (red) VAN HECK water pump model HK 700. The capacity of that pump set is 5750 m³/hour (Total head: 18 mwc). Required engine power: 400 kW.
Water pump, diesel engine driven for agricultural irrigation (CAT C18 acert engine).
Van Heck water pump model Model HK 700 with CAT C18 acert engine. The suction mouth is 900 mm on suction site of the pump (left side of the picture).
CATERPILLAR diesel engine. Type: C18 Acert
CATERPILLAR diesel engine. Type: C18 Acert . Power 428 kW (WOF A-Rating = Continuous power). Speed: 1800 rpm
Van Heck water pump model HK 700. Capacity: 5750 m³/hour.
Van Heck water pump model HK 700. Capacity: 5750 m³/hour. Total head: 18 mwc. Speed: 540 rpm. Required engine power: 400 kW. NPSH (Net-Positive-Suction-Head) required: 7,3 meter

The HK pump types are single-stage mixed-flow centrifugal pumps for lifting large quantities of water to medium heads. The pump is suitable for heavily contaminated and unpurified water.

The pump types HK are not self-priming, but by using the Van Heck priming system and non-return valve, the pump is getting self-priming.

Connections: suction side 900 mm / discharge side 700 mm

The pump casing is a solid circular casing with a tangential discharge nozzle with a diameter of 700 mm. It can be turned 360 degrees in discrete steps. The pump casing is supported by a cast iron bearing block with 4 integrally casted feet.

The shaft seal is a gland packing with grease lubrication. A stainless steel sleeve in the seal area protects the shaft.
Impeller of water pump model HK700
Impeller of water pump model HK700 (view from suction side). The diameter of suction mouth is 900 mm.
High capacity water pump for agricultural application driven by Cummins diesel engine QSL-9C
Irrigation water pump for agricultural application. The water pump is driven by Cummins diesel engine type QSL-9C with 224 kW at 1800 rpm.
Centrifugal water pump with pump capacity of 3550 cbm/h. at 640 rpm
Van Heck (Made in the Netherland) centrifugal water pump model HK500. Capacity: 3550 cbm per hour at 640 rpm (12 m total head). On the above picture you can see the (red) pump unit on a base frame together with CUMMINS diesel engine type QSL9C, the engine radiator (rightmost) and the main silencer of the exhaust system. The suction mouse is leftmost.
First test run of the Van Heck water pump model HK 500 at the manufacturer's site.
First test run of the Van Heck water pump model HK 500 at the manufacturer's site. The unit is driven by CUMMINS diesel engine type QSL9C (224 kW at 1800 rpm.)
The water pump unit HK500 with Cummins diesel engine QSL9-C during the test run.
The thoughput of 3550 m³ of water per hour is very exciting. The water pump unit HK500 with Cummins diesel engine QSL9-C during the test run.
RAC-Germany does successfully cooperate with Van Heck in the field of agricultural irrigation projects.
The company Van Heck in the Netherland has established a strong market position and earned a particularly good name in the sector of water pumping. RAC-Germany does closely and successfully cooperate with Van Heck (high capacity water pumps) and CATERPILLAR (reliable industrial diesel engines) in the field of agricultural irrigation projects.

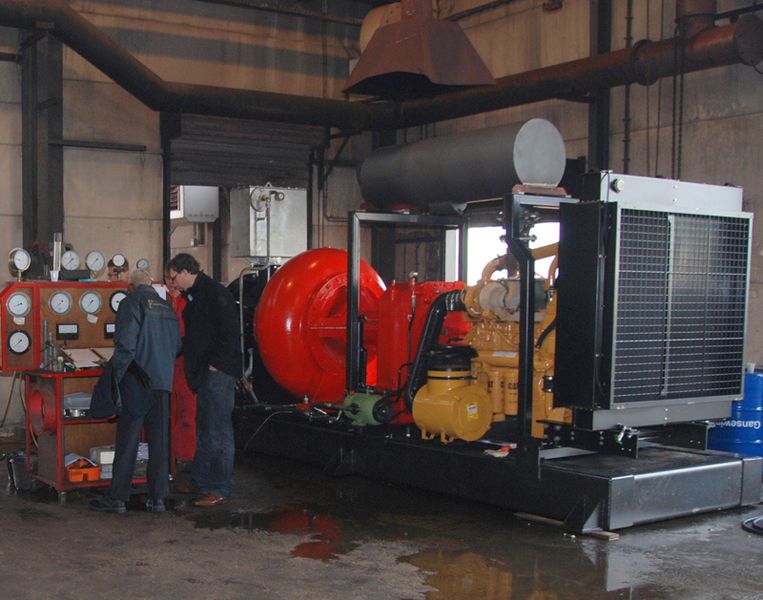

Before shipping each water pump unit will be substantial tested on the Van Heck testing facilities.
Before shipping each water pump unit will be substantial tested on the Van Heck testing facilities.
The test equipment and instrumentation:
• Annubar (measuring instrument) inserted in test pipe.
• Eagle eye analogue display (in combination with Annubar), mounted in/on a panel with other essential meters e.g. Pressure and vacuum meters.
• Georg Fischer Signet 2552 Magmeter digital measuring instrument inserted into the test pipe with digital read out.
• Pipe with varying diameters (from Ø200mm too Ø900mm). Each with a butterfly valve to isolate the unused pipes during testing.
• Diameter 900 mm gate valve to reduce/increase the pressure (resistance) in the test pipe.
• Non return valve (essential for vacuum system)
• Huge water basin

Our customers are invited to join the test run, to get direct contact with our technicians and engineers and to discuss special technical issues and questions.
Test run of irrigation water pump before shipping to the final customer in Africa
Test run of irrigation water pump before shipping to the final customer in Africa.
What will be tested:
The static head is measured, calculated and registered on the test sheet. The gate valve is positioned so that the resistance pressure in the pipe falls within the normal operating area of the chosen pump. Then:
• The pressure in the discharge pipe is noted.
• The vacuum pressure is noted (suction pipe).
• The pressure difference is noted (from Annubar).
• The flow registered by Signet digital meter is noted.
• The fuel consumption and load factor are noted. This information is available via the engine management system.*

The pressure difference can then be converted to a flow by using the capacity chart for the corresponding pipe diameter.
All recorded pressures are then added up and plotted on a graph against the flow read to give a preliminary indication during the test.
The gate valve is then closed slightly further to increase the resistance in the pipe and the procedure written above is repeated. This process is repeated in steps until a complete curve can be plotted.
The test can be furthered with a duration test. The gate valve can be closed to obtain the maximum work point of the engine and the pump can be left to run for a specific time. This test is primarily an engine test. Engine properties can be read from the engine management system.
* Gearbox/Pump speed and temperature can also be monitored.
After these test are completed the pump curve is plotted digitally. Each pump will receive its own test curve plotted on top of the standard curve.
During the test run: The water pump HK700 runs for several hours with capacity of 5954 m³/h.
The Van Heck water pump model HK 700 is rated for 5750 cbm/hour permanent capacity. During the test runs the pump for several hours with capacity of 5954 m³/h. as the above picture shows.
Eight (8) units diesel engine driven high capacity water pumps are ready for containerization and shipping.
Eight (8) units diesel engine driven high capacity water pumps are ready for containerisation, shipping to the final destination and supplying water for the irrigation of cane sugar fields.
Containerisation of the water pump units is part of our mission.
Our job in that irrigation project did start with the determination of the requirements on the plantation in East Africa, after that the project planning needed to be executed and we took contact with the manufacturer and supervised the production until the test run. Last not least part of our job was containerization of the water pump units.
The very heavy water pump units can not at all move inside the container.
That is what we call safe packing: The very heavy water pump units can not at all move inside the container during the long journey to the final destination in a very remote area in Africa.

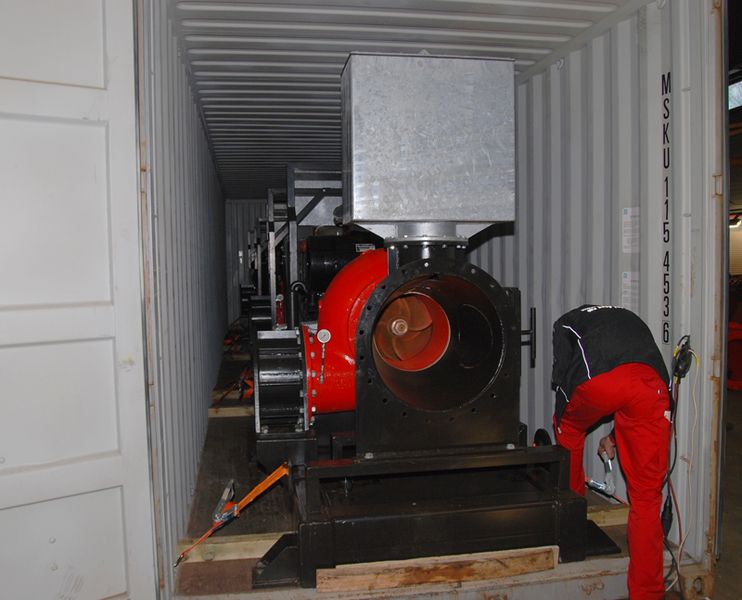

Finally the job is done. View inside the 40 feet container just before shipping.
Finally, the job is done. View inside the 40 feet HC container just before shipping: In the background of the picture the water pump unit HK500. In the foreground on palettes packed valves for the water pump unit HK500 and HK400.
